Weld-in MK1 Golf VR6, 4Motion R32 Mounting Kit

Zoom

Our Price:  £145.00(Inc. 20% VAT)(£120.83 Exc. VAT) –+ Add to Basket Brand:  Retrofication Delivery:  No charge Availability:      Special order, 10 days Share

MK1 Golf / Jetta / Caddy / Scirocco WELD-IN VR6 12v & 24v Engine Mounts

(DOES NOT INCLUDE GEARBOX MOUNTS)

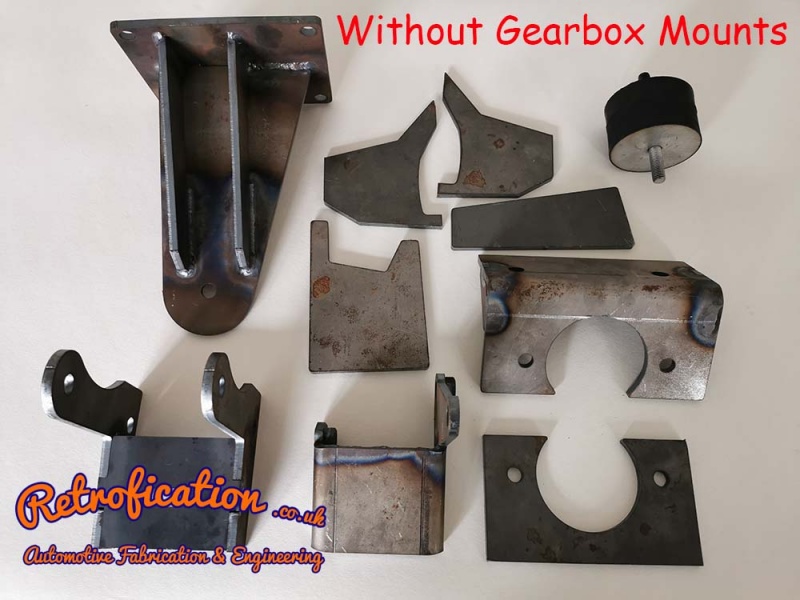

Included in this kit:

Front Gearbox Mount
Front Engine Mount
Rear Engine Mount

(Does not include mounting bushes)

To fit this kit you will also require 2x 357199402A mounts

You may be wondering why we offer a weld-in VR6 kit for the MK1?

Well we have been fitting VR6's into MK1s for 20 years now and the original VW mounts do not lend themselves very well at all, for fitting any of the VR6 engine variants!

Benefits of the weld-in kits:

1. In total this kit offers 5 mounting points for these heavy engines, including 2 on the weakest point, which is the front crossmember. The bolt-in kit only offers 1 mounting point here! And if you know these front crossmembers, they barely cope with a 1.8 4 cylinder, let alone the torque and weight or the VR.

2. With this kit, you can use standard late MK1 Golf Cabio & Scirocco 2 driveshafts with the 100mm inner CV's on an 02A or J gearbox, or custom length 02M driveshafts (both available separately in our shop. With the bolt-in kit you will need more costly custom length driveshafts, which exaggerates the the problems associated with unequal lengths.

3. The gearbox remains in its most natural position as per any 4 cylinder conversion. With the bolt-in option (and depending on your ride height/wheel/tyre combo) the tyre can fail the end of the gearbox when turning, due to the whole engine and gearbox being pushed over the the left of the chassis. This positioning also causes issues with clearance between the servo/brake master cylinder!


Benefits of a Bolt-in kit over the Weld-in:

1. Relatively straight forward for a beginner or for someone who doesn't weld.


So what involved in fitting the weld-in kit?

Its not as bad as you may think. The 3 gearbox mounts actually bolt in, giving you the correct position of the engine, so that you can then weld that last 2 engine mounts in. A little fettling may be required to the mounts as all chassis's are slightly different, but if you a fairly competent and can weld yo will soon work it out.

The original drivers side mount will need carefully cutting off of the chassis leg, and the right hand side chassis leg will need notching slightly (or beaten with a hammer) to clear the harmonic balancer/lower flywheel.

This kit will work on the following models:

MK1 Golf
MK1 Golf Cabrio
MK1 Caddy
MK1 Jetta
Scirocco 1 & 2
US built Rabbits & Pickups

Supplied in a raw steel finish except for the gearbox mounts.

No fitting instructions are given, but we can offer advice.

Also Available with 5 or 6 speed gearbox options in our shop
